Kubernetes Runner — Production Bot Deployment

The Kubernetes Runner deploys each bot as its own Deployment + Service + Ingress + PersistentVolumeClaim inside a Kubernetes cluster, giving you true per-bot isolation, horizontal scaling across nodes, and built-in observability via Prometheus. It's the right choice once you're running more than ~10 bots, want high availability, or already operate other workloads on Kubernetes.

This guide walks through cluster preparation, ingress and TLS configuration, kubeconfig setup, and how VolatiCloud actually deploys bots once everything is wired up. For the simpler single-host alternative, see Docker Runner.

When to Pick Kubernetes Over Docker

Scenario	Recommended runner
Fewer than 10 bots, personal use	Docker — simpler
10–100 bots, team or solo at scale	Kubernetes
100+ bots, production trading	Kubernetes
High availability required	Kubernetes
Per-bot resource isolation needed	Kubernetes
Already running other workloads on K8s	Kubernetes

Prerequisites

• Kubernetes 1.24+ cluster
• kubectl access with cluster-admin permissions (needed for namespace, RBAC, and PVC creation)
• Ingress controller installed (nginx-ingress recommended; any compatible controller works)
• Optional but recommended: Prometheus Operator for metrics scraping
• Optional but recommended: S3-compatible storage for SQLite database backups

Cluster Preparation

Install Nginx Ingress

If your cluster doesn't already have an ingress controller:

helm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx
helm install ingress-nginx ingress-nginx/ingress-nginx \
  --namespace ingress-nginx \
  --create-namespace

Create a Bot Namespace

VolatiCloud places each bot in a dedicated namespace (or a shard of namespaces at high scale — see Namespace Sharding below). Create the base namespace:

kubectl create namespace volaticloud-bots

Adding the Kubernetes Runner

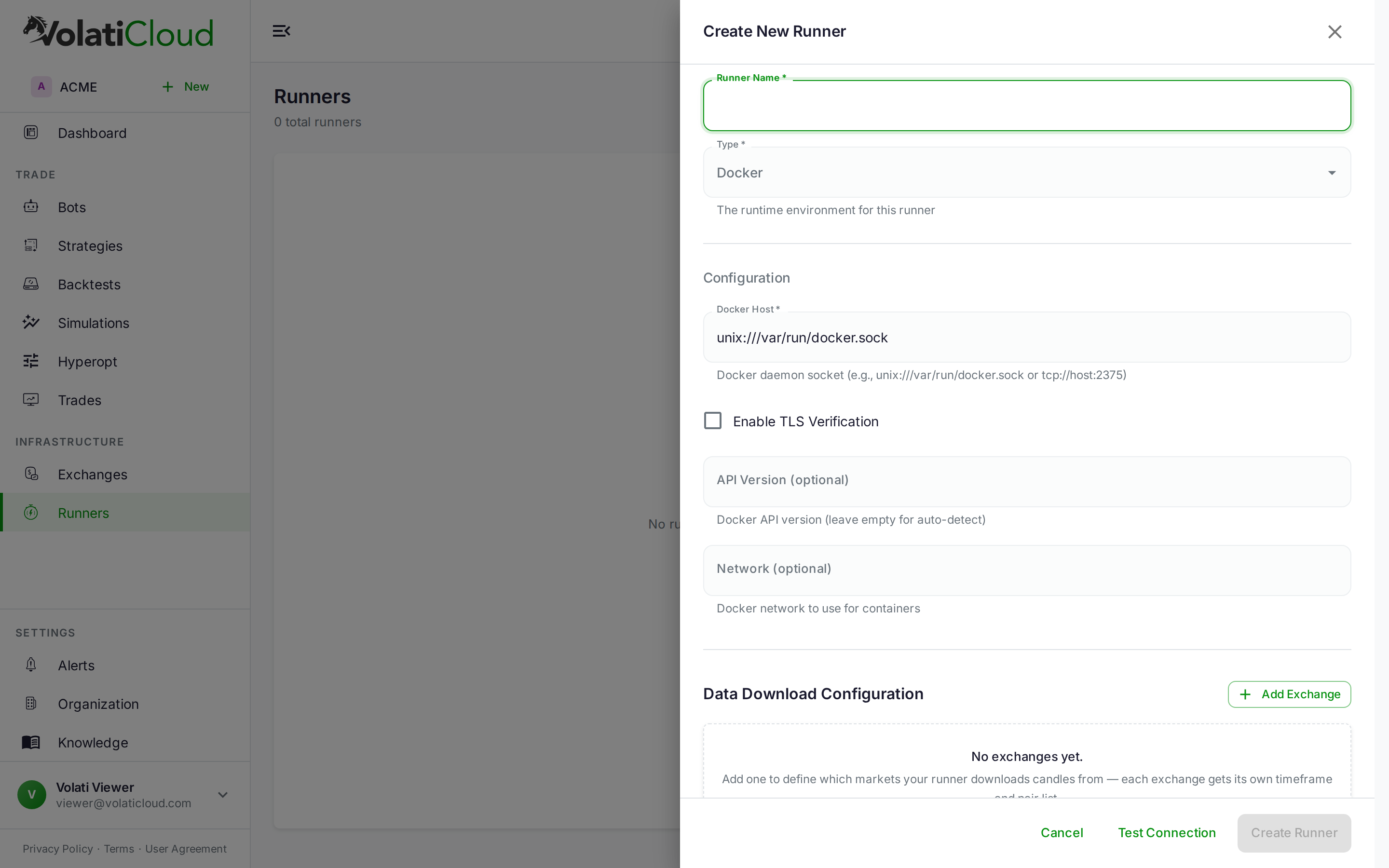

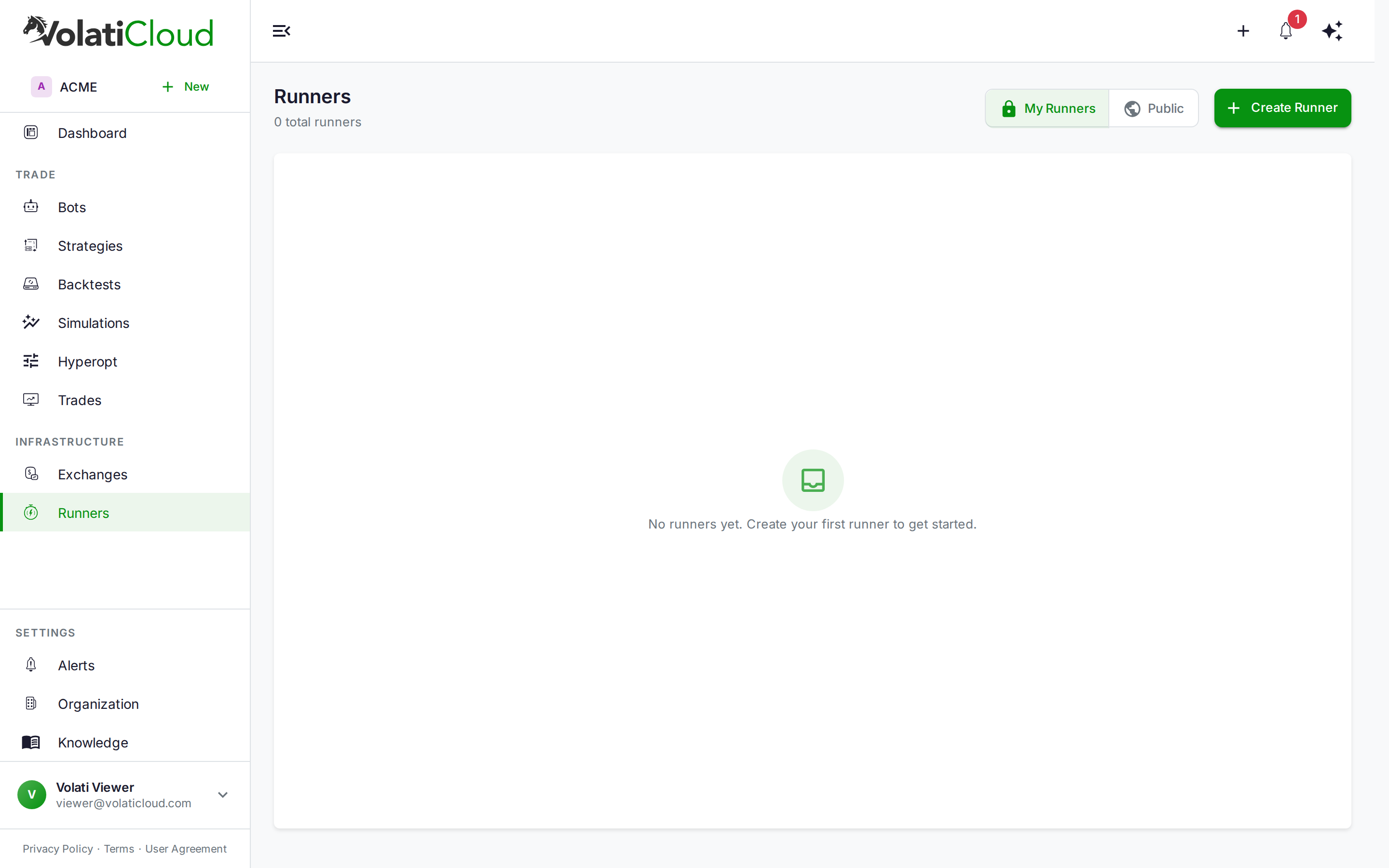

1. Open Runners → Create Runner
2. Pick the Kubernetes runner type
3. Fill in the configuration (described below)

Required Fields — Kubeconfig

Field	Description	Example
Kubeconfig	Full kubeconfig YAML, pasted	(paste your kubeconfig)
Context	Kubernetes context to use	my-cluster
Namespace	Base namespace for bot deployments	volaticloud-bots

The kubeconfig is encrypted at rest with field-level AES-256-GCM. Use a kubeconfig scoped to the bot namespace via RBAC if you don't want VolatiCloud to have cluster-admin in production — at minimum it needs Deployment, Service, Ingress, PersistentVolumeClaim, ConfigMap, and Secret permissions in the target namespace.

Required Fields — Ingress

Field	Description	Example
Ingress host	Base domain for bot URLs (each bot gets a subdomain)	bots.company.com
Ingress class	Ingress controller class	nginx
TLS enabled	Enable HTTPS for bot ingress	true
TLS secret	Kubernetes TLS secret name	bots-tls

Required Fields — Storage

Field	Description	Example
Storage class	Kubernetes storage class for PVCs	standard
Shared data PVC	PVC for shared historical OHLCV cache	freqtrade-data
Freqtrade image	Docker image for bot containers	freqtradeorg/freqtrade:stable

Optional — Observability

Field	Description	Example
Prometheus URL	Prometheus server for metrics scraping	http://prometheus:9090

TLS Configuration

For HTTPS on bot ingress URLs, create a TLS secret in the bot namespace.

With cert-manager (recommended)

apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: bots-tls
  namespace: volaticloud-bots
spec:
  secretName: bots-tls
  issuerRef:
    name: letsencrypt-prod
    kind: ClusterIssuer
  dnsNames:
    - "*.bots.company.com"

Manual wildcard certificate

kubectl create secret tls bots-tls \
  --cert=tls.crt \
  --key=tls.key \
  -n volaticloud-bots

Use a wildcard certificate (*.bots.company.com) so each bot gets its own subdomain without having to issue a certificate per bot.

Shared Data PVC

Create a single shared persistent volume for historical OHLCV data, mounted into every bot pod. This avoids re-caching the same OHLCV files per bot and dramatically reduces both startup time and storage cost.

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: freqtrade-data
  namespace: volaticloud-bots
spec:
  accessModes:
    - ReadWriteMany   # required for sharing across pods
  resources:
    requests:
      storage: 50Gi
  storageClassName: standard

ReadWriteMany is required — confirm your storage class supports it (NFS, EFS, CephFS, Longhorn). If your storage class only supports ReadWriteOnce, you'll need a per-bot data volume instead, which is significantly more expensive at scale.

How Bots Are Deployed

When you start a bot on a Kubernetes runner, VolatiCloud:

1. Picks a target namespace — the configured namespace, or one of N shards if namespace sharding is enabled
2. Creates a Deployment with 1 replica running the configured Freqtrade image
3. Creates a Service exposing the Freqtrade REST API
4. Creates an Ingress so VolatiCloud's control plane can reach the API
5. Creates a PersistentVolumeClaim for the bot's SQLite database (separate from the shared data PVC)
6. Wires up Prometheus scraping if a Prometheus URL is configured
7. Restores the SQLite database from S3 if S3 is configured and the bot was previously backed up

When you stop a bot, the database is uploaded to S3 (if configured), the pod is removed, and the PVC stays around for the next start. See ADR-0032 — Bot Database Backup Strategy for the backup contract.

Resource Allocation

Default resource requests and limits per bot:

Resource	Request	Limit
CPU	100m	500m
Memory	256Mi	512Mi

These are sized for typical 5–20 pair bots. Heavy strategies on many pairs may need higher limits — configure per-runner overrides in the runner's advanced settings.

S3 Database Backups

Configure S3 to automatically back up bot SQLite databases. The lifecycle:

Bot starts → SQLite restored from S3 (if exists) → bot runs → bot stops → SQLite uploaded to S3
Bot restarts → SQLite restored from S3 → trade history continues

This means trade history survives:

• Pod restarts (e.g., node maintenance)
• Runner migrations (rebuilding the cluster)
• Accidental PVC deletion

Configure S3 endpoint, bucket, access key, secret, and region in the runner. Credentials are encrypted at rest the same as the kubeconfig.

Cluster Sizing Guidelines

Bots	Nodes	RAM per node	CPU per node
1–10	1–2	4 GB	2 vCPU
10–50	3–5	8 GB	4 vCPU
50–200	5–10	16 GB	8 vCPU
200+	10+	32 GB	16 vCPU

Pick node sizes that fit at least 4–8 bots per node so failure domains stay reasonable. Single huge nodes are an anti-pattern — they concentrate failure risk.

Namespace Sharding

For very high-scale deployments (100+ bots), VolatiCloud distributes bots across multiple namespaces. The reasoning:

• Kubernetes RBAC lookups become slow with thousands of resources in a single namespace
• ResourceQuotas and LimitRanges are per-namespace — sharding lets you set per-shard policies
• Per-namespace controllers (network policies, OPA constraints) operate faster on smaller object sets
• Operational blast radius is contained — a misconfigured policy on one namespace doesn't affect every bot

The shard count is configurable per runner. See ADR-0058 — Shared Ingress and Namespace Sharding for the architectural reasoning.

Test the Runner

After saving the runner, click Test Connection. VolatiCloud:

• Connects to the cluster using the kubeconfig
• Verifies namespace access
• Checks the storage class is available
• Confirms the ingress class exists
• Reports any blocking issues with actionable error messages

Troubleshooting

Connection failed: forbidden

• The kubeconfig's user lacks RBAC permissions in the target namespace. Grant Deployment / Service / Ingress / PVC / ConfigMap / Secret rights at minimum.

Storage class not found

• Verify the storage class exists: kubectl get storageclass
• Confirm it supports the access mode you need (ReadWriteMany for shared PVC, ReadWriteOnce for per-bot DB PVCs)

Ingress not provisioned

• Confirm the ingress controller is installed and running
• Verify the ingress class string matches your controller's class name

Bot pod stuck in Pending

• kubectl describe pod to see the event log — usually insufficient resources or a missing PVC
