Platform Overview

This page is the high-level map of VolatiCloud's architecture: what the building blocks are, how they connect, and where each one lives in the dashboard. If you'd rather jump straight to building, head to the Quick Start — you can have a dry-run bot trading real market data in about 20 minutes. This overview is the conceptual reference you can come back to whenever a term is unclear.

Core Trading Bot Building Blocks

Strategy

A Strategy defines the logic of how your bot trades. It specifies:

• Entry conditions — when to open a trade (e.g., RSI crosses above 30 after being oversold)
• Exit conditions — when to close a trade (e.g., target profit reached, RSI crosses above 70)
• Indicators — RSI, MACD, EMA, Bollinger Bands, ATR, Ichimoku, and 25+ others
• Parameters — timeframe, trading pair patterns, stop-loss, leverage

You can author strategies two ways:

1. UI Builder — visual drag-and-drop, no Python required (UI Builder docs)
2. Code Mode — full Python with the complete Freqtrade strategy API (Code Mode docs)

Strategies are versioned and immutable once a backtest runs against them — see strategy versioning and forking.

Exchange

An Exchange represents your connected trading account. VolatiCloud supports 14 exchanges — every venue Freqtrade ships with first-class support for. See the supported exchanges page for the full list, capabilities (spot, margin, futures), and per-exchange API key setup.

• API keys are encrypted at rest with AES-256-GCM field-level encryption
• Supports spot, margin, and futures trading where the venue allows it
• Read-only keys for backtest data, trade-scoped keys for live bots — kept separately

Runner

A Runner is the infrastructure where your bot processes execute:

• Cloud-managed — VolatiCloud-operated Kubernetes cluster (you don't manage anything)
• Docker Runner — your own Docker host (VPS, cloud VM, on-prem)
• Kubernetes Runner — your Kubernetes cluster, for production-scale or HA setups

See runners overview for the full trade-off table.

Bot

A Bot is the live trading instance, defined as Strategy + Exchange + Runner. The bot is the thing that actually places orders on the exchange.

• Choose Dry Run (paper trading) or Live mode
• Configure stake amount, max open trades, entry/exit pricing
• Start, stop, restart, and force-exit positions from the dashboard
• Track through the bot lifecycle from creating → running → stopped

Data Flow: How a Bot Trades

The control plane (strategy editing, backtest results, alerts) lives in the VolatiCloud cloud. The data plane (the actual Freqtrade process that places orders) lives on your chosen runner. API keys travel encrypted to the runner only when needed for execution.

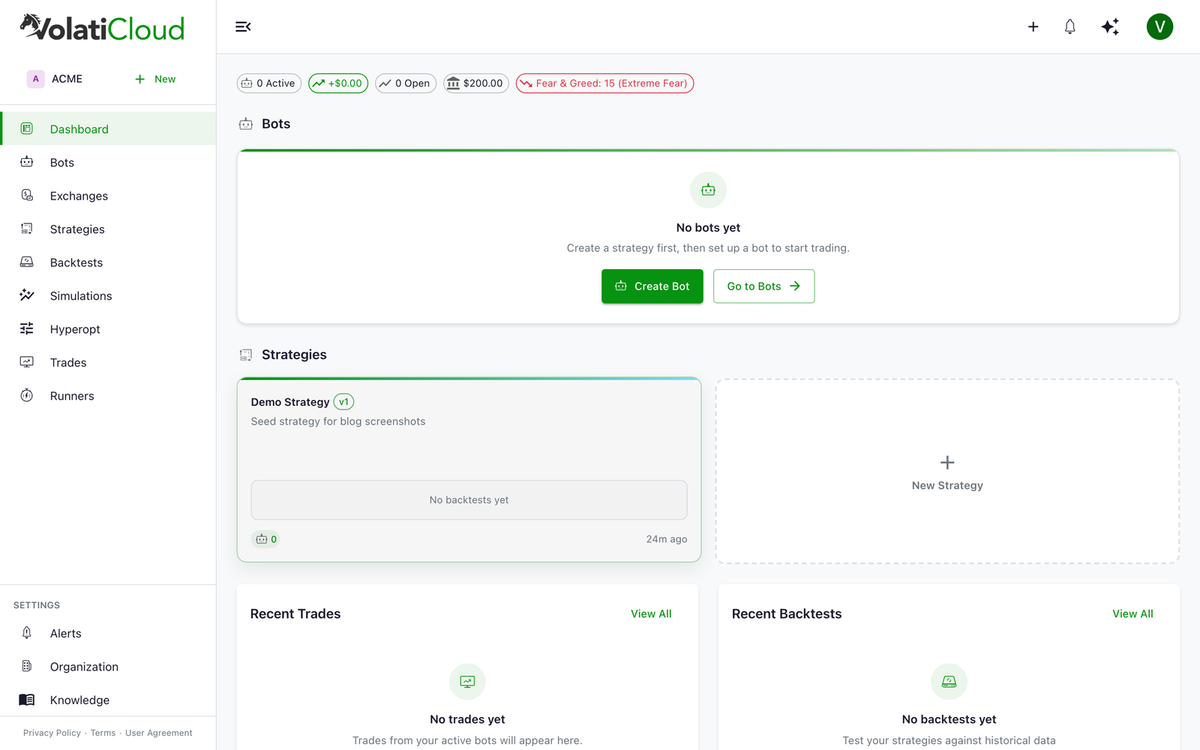

Dashboard Navigation Reference

Section	URL	What you'll find
Dashboard	/	Overview of all bots, recent trades, backtests
Bots	/bots	List and manage all trading bots

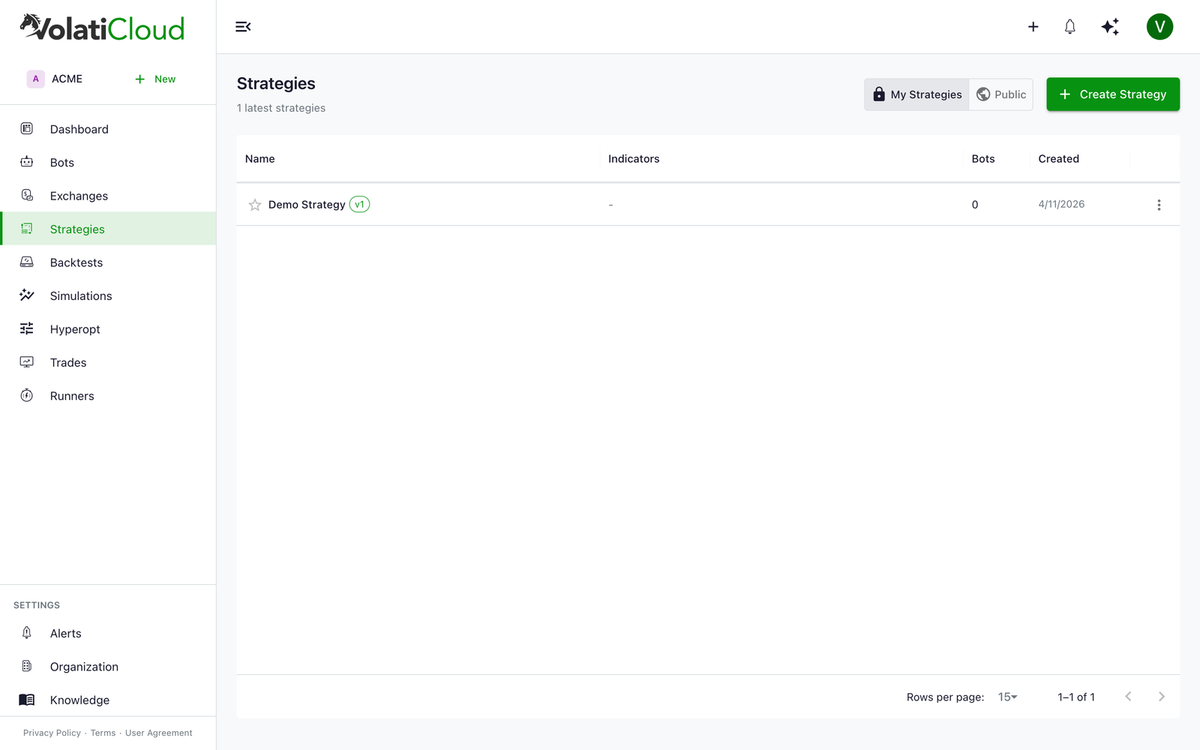

Strategies	/strategies	Create and manage trading strategies
Backtests	/backtests	Historical performance testing
Exchanges	/exchanges	Connected exchange accounts
Runners	/runners	Bot execution infrastructure
Alerts	/alerts	Alert rules and notification history
Trades	/trades	Trade history across all bots
Billing	/organization/billing	Subscription and credit management
Organization	/organization/users	Team members and permissions

Security Model

VolatiCloud's security model has four layers:

• JWT authentication via Keycloak OpenID Connect
• UMA 2.0 authorization — fine-grained resource-level permissions, per-action scopes
• AES-256-GCM field encryption — exchange API keys encrypted before database storage with a separately-held encryption key
• Multi-tenant isolation — your data is never visible to other organizations

For the team-access dimension (how view-secrets works, role-based recipients, audit trails), see team management.

Next Steps

• Quick Start Guide — get your first bot running in about 20 minutes
• Creating a Strategy — learn about strategy types and authoring modes
• Connecting an Exchange — add your exchange API keys
• Backtesting Overview — validate before going live
